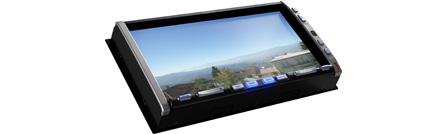

2-DIN尺寸DVD多媒体工作站, 配带7英寸触控屏幕/CeNET连控
简介
规范
放大视图
MONITOR SECTION
Screen size (W × H), mm
154.0 × 87.0 (7 inch)
Display type
Transparent-type TN liquid crystal display
Drive principle
TFT active matrix display
Number of pixels
336,960
VRC video input
1.0 ±0.2 Vp-p(input impedance 75 Ω)
VRC audio input
130 ±60 mVrms(input impedance 10 kΩ or more)
TUNER SECTION
Frequency bands
FM: (MHz) 0.05 MHz steps
87.0 to 108
AM: (kHz) 9 kHz steps
531 to 1,629
FM usable sensitivity (dBf)
9
FM 50 dB quieting sensitivity (dBf)
15
FM alternate channel selectivity (dBf)
70
FM stereo separation @ 1 kHz (dB)
32
FM Stereo freq. resp. @ ± 3 dB (Hz)
30 to 15,000
DVD SECTION
Useable discs
DVD video/DVD±R/RW
Frequency response (Hz)
20 to 20,000 (48 kHz)(+1 dB,-1 dB)
Distortion (%)
0.006
CD SECTION
Wow/Flutter (WRMS)
Below measurable limits
S/N ratio (dB) 1 kHz
100
Frequency response (Hz)
20 to 20,000(+1 dB,-1 dB)
Dynamic range (dB) 1 kHz
100
Harmonic distortion (%)
0.006
AUDIO SECTION
Power output
4 × 27 W
GENERAL
Dimensions (W × H × D), mm
178 × 100 × 165
Weight (kg)
2.4
Power consumption
4.0 A (at 1 W)
Power requirement
14.4 V DC(10.8 ~ 15.6 V)
Speaker impedance
4Ω(4Ω to 8Ω allowable)
